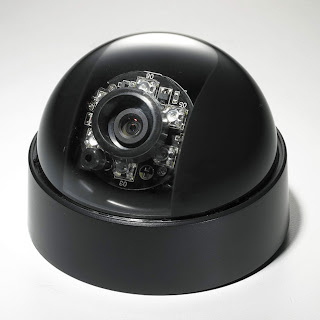

Everfocus Day/Night Dome Camera

Dome Camera - Color Day/Night IR-Type 380TVL

This high quality Everfocus Day/Night Indoor Dome Camera uses infrared light emitting diodes (LEDs) to give you CCTV coverage even in complete darkness. During daytime, it functions as a standard color camera, but when the light level goes below 0.3 lux (about the brightness of the full moon under a clear sky), the camera switches into night mode, which turns on its light emitting LEDs, which will give you a clear picture in black and white even when the room is completely dark.

The IR emitting LEDs will light up the area in front of the camera in 850nm infrared light, a color of light that the human eye cannot see. Only a very slight red glow will be visible to the eye in night mode, but the transmitted image will be clear as day. The illuminators will light up an area in front of the camera up to approximately 40 feet away. The lens in this camera is made of glass, while many no-name import products have hard plastic lenses.

It comes standard with a black mounting base, although can be ordered with a white base if you prefer. A "pigtail" is included in the box to make wiring for power easier. Mounts easily to the ceiling (or wall with optional bracket).

The Everfocus ED200 IR-type day/night security dome camera, with its 380 lines of resolution, is the standard resolution version of this camera and will work for most applications. For a small additional price increase, you can upgrade to the ED300, which is a higher resolution version of this camera, and also features a varifocal lens.


Video Format: NTSC
Picture Element:NTSC: 510 (H) x 492 (V)
Horizontal Resolution: 380 TVL
Video Output: BNC 1.0Vp-p, 75 ohm
S/N Ratio: 48 dB (AGC off)
Auto White Balance: Yes
Gamma Correction: 0.45
Sync Mode: Internal Sync.
IR Distance: 45 feet
Dimensions: 108 (D) x 80 (H) mm / 4.3" (D) x 3.1"(H)
Power Source: 12 V DC + 10%; 6 watts
Operating Temperature: 0°C ~ 50°C / 32°F ~ 122°F
Power Consumption: 280mA (IR on) 100mA (IR off)
Auto Tracing Function: AGC (Auto Gain Control)
ES (Electronic Shutter)
Sensitivity: 0.3 lux/F=1.2 (AGC On) 0 lux (IR Led on)
Lens (optional): 4.3mm, 6mm, or 8mm
IR Life: 20,000 hours
IR Wave Legth: 850nm

Available in Black or White
